The Opticron Universal Tele-Adapter (UTA) enables you to increase the magnification of your Opticron binocular or telescope + eyepiece combination by a factor of 2. Fitted to a binocular, the 40951 UTA converts one half into a higher powered long eye relief monocular. It also connects to Opticron SDL, HDF, HR and IS eyepieces. Featuring a long eye relief eyepiece and fitted with a twist type retractable eyecup, the UTA 2x is compatible with a wide range of different eyepieces as it is supplied as two separate components:

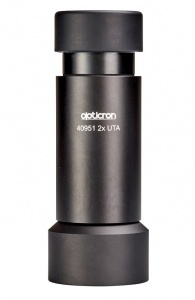

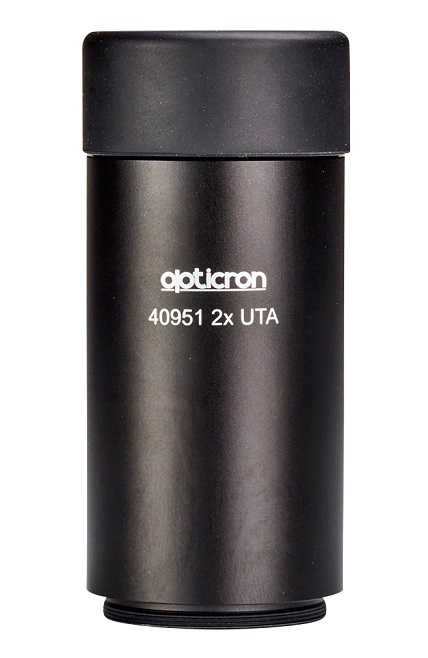

40951 2x body only.
A connection ring
How to choose the correct connection ring:
To find the correct connection ring to match your eyepiece please refer to the list below or measure the diameter of your eyepiece lens to see if one of the connection rings suits your instrument. The measurements provided below are the internal diameters of each connection ring in mm. If you are unable to locate the correct connection ring please contact us by telephone or e-mail.
40941 42.5~41.3mm DBA VHD, BGA Classic, Oregon 4 LE WP and Savanna WP
40942 42~41.3mm Countryman BGA HD, Imagic TGA WP and WP Monocular 8x30
40943 44.3mm Imagic BGA SE, Verano BGA HD, Explorer WA, T3 Trailfinder, WP Monocular 8x32, HDF T 40810 and HR2 40933 eyepieces
40944 40mm HR WP, Traveller BGA Mg, Savanna R, IS 40916S IS 40918S HR2 40930 and HR2 40931 eyepieces
40945 34.6mm SR.GA, Fixed mag.
40947P Push Fit DBA Monocular and BGA Monocular
40948 50~49.5mm HDF T 40862 eyepiece
40949 52.5~51.26mm SDL 40936 eyepiece
To order a connection ring, see below
